TORCHN 3000W 3KW Solar Panel Kit 48V Home Off Grid System with High Efficiency LCD MPPT Controller
Features
This product enjoys many merits: Full power,Long service life,Low temperature resistant,high safety and easy installation.
Application
3kw solar system off grid.Our solar energy system is mainly used for home energy storage and commercial power generation etc.
1.TORCHN is committed to bringing photovoltaic energy storage power generation systems into every home.From solar panels for your house to battery backup systems. We design, build and maintain home power systems to make your home more resilient, to reduce your eco footprint and lock in your energy rates.
2. Businesses benefit greatly from investing in their energy future. The ROI on a commercial solar panel installation makes going green a no brainer. Look no further for solar on your building, batteries to keep you up and running and generator backups to make you resiliant.
Parameters
|
System configuration and quotation: 3KW solar system quotation |
||||
|
NO. |
Accessories |
Specifications |
Qty |
Picture |
|
1 |
Solar Panel |
Rated Power: 550W ( MONO )
Number of Solar Cells: 144 (182*91MM) Panel Size: 2279*1134*30MM Weight: 27.5KGS Frame: Anodic Alumina Alloy Connection box: IP68, three diodes Grade A 25years output warranty 2 pieces in series, 2 series in parallel |
4 pcs |
|
|
2 |
Bracket |
Complete Set for Roof Mounting
Material: aluminium alloy Max wind speed: 60m/s Snow Load: 1.4Kn/m2 15 years warranty |
4 set |
|
|
3 |

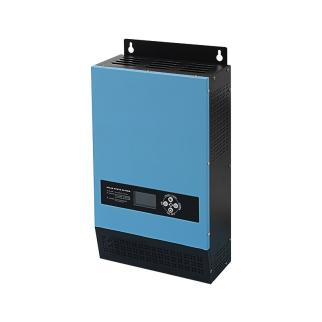

Solar Inverter (Low Frequency) |
Rated Power: 3KW DC Input
Power: 48V AC input Voltage: 220V AC output Voltage: 220V Pure Sine Wave With Built-in MPPT charger controller 3 years warranty |
1set |
|
|
4 |
Solar Gel Battery |
Voltage: 12V
Capacity: 100AH Size: 405*231*173mm Weight: 30KGS 3 years warranty 4 pieces in series |
4 pcs |
|
|
5 |
Auxiliary materials |
PV cables 4 m2 ( 50 meter) |
1set |
|
|
BVR Cables 10m2 (5 pieces ) |
||||
|
MC4 Connector ( 5 pairs) |
||||
|
DC Switch 2P 80A (1 pieces) |
||||
|
6 |
Battery Balancer |
Function: Used for ballance each batteries voltage, to enlarge the battery using life |
|
|
Dimensions
We will customize a more detailed solar system installation diagram for you.
Customer installation case
Exhibition
FAQ
1.What's the price and MOQ?
Please just send me inquiry, your inquiry will be replied within 12 hours, we will let you know the latest price and MOQ is one set.
2.What is your lead time?
1)Sample orders will be delivered from our factory within 15working days.
2)General orders will be delivered from our factory within 20working days.
3)Big orders will be delivered from our factory within 35 working days at most.
3.How about your warranty?
Normally,we provide 5 years warranty for solar inverter,5+5 years warranty for lithium battery,3 years warranty for gel/lead acid battery, 25 years warranty for solar panel and whole life technical support.
4.Do you have you own factory?
Yes,we are leading manufacturer mainly in lithium battery and lead acid battery ect.for about 32 years.And we also developed our own inverter.
5.Why choose a solar power system?
The TORCHN 5KW Off Grid Solar System Residential Solar Kit is a complete package that includes all the components necessary to set up a fully functional off-grid solar power system. With a total capacity of 5KW, this system is capable of generating ample electricity to meet the needs of a typical household, making it an ideal choice for homeowners who are looking to reduce their reliance on the grid and lower their energy bills.
